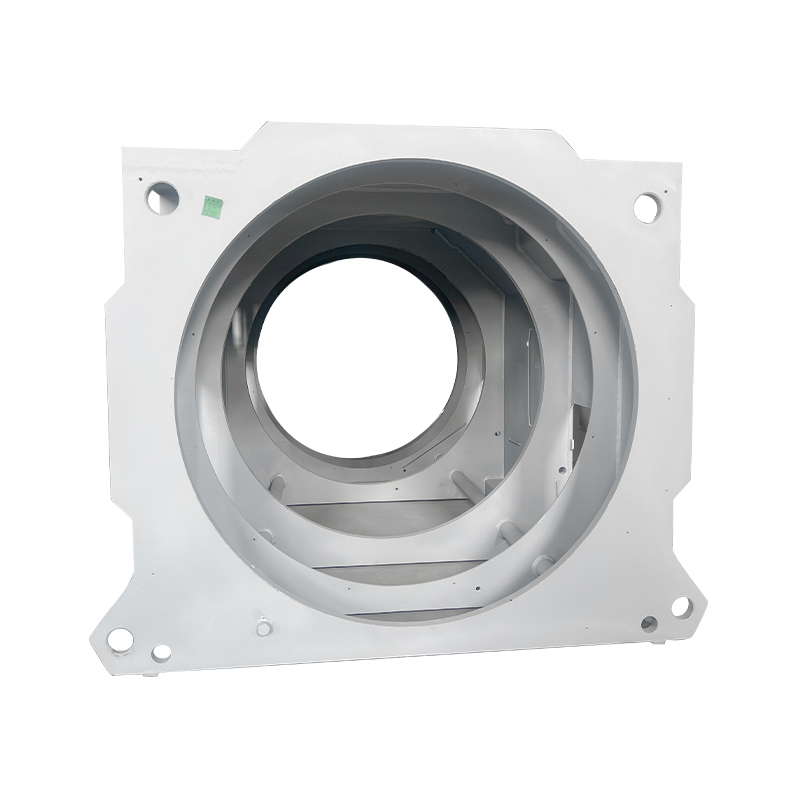

Industrial Welded Box-Type Motor Base

I. Basic Concept and Positioning

The industrial box-type machine base is a motor supporting structure manufactured using steel-plate welding processes. Featuring a square/rectangular box as its main body, it is a fundamental component that provides stable support and all-round protection for the motor. It encloses internal motor components (stator, rotor, bearings, etc.) within the box while also providing support, heat dissipation, and protective functions. It is the preferred frame type for large industrial motors and motors used under special operating conditions.

II. Key Structural Features

1. Main Frame Design
Square/rectangular cross-section: A hexahedral frame welded from steel plates or structural steel, forming a stable load-bearing structure with strong anti-tilting performance.

Modular design: Often adopts a detachable structure to facilitate transportation and installation; during maintenance, parts can be disassembled locally.

Stiffener arrangement: Transverse, longitudinal, or diagonal stiffeners are installed inside the frame to significantly improve overall rigidity and resistance to deformation.

2. Critical Components
Base: Carries the full weight and operating loads of the motor; typically welded from thick steel plates (8–20 mm), with adjustable leveling feet at the bottom.

Enclosure: Box-type side plates that protect internal components, with reserved cooling passages and inspection/maintenance doors.

End plates: Located at both ends of the frame; provided with bearing bores and cable feed-through holes, and welded/fixed to the enclosure.

3. Functional Highlights

Cooling system: The enclosure is designed with ventilation openings, cooling fins, or cooling pipelines to address heat dissipation issues inherent to enclosed structures.

Sealing design: Seals/gaskets are applied at joints to ensure the required protection rating (IP54/IP55) for dustproof and waterproof performance.

Lifting provisions: Lifting rings or lifting lugs are installed on the top for easier installation and handling.

Terminal box: Independently welded to the side of the enclosure, providing an electrical connection interface for easier maintenance.
